Shandong Yiguang Medical Instruments Co., Ltd.

Infusion set with micro flow regulator

 Structure:

Spike cap, Spike, Air Vent, Drip chamber, Filter, Tube, Roller clamp,

Flow speed regulator, Y-Injection site , Connector luer lock with cap

Options:

1.  With or without Air vented
2.  Transparent tube, DEHP-FREE tube
3.  Latex injection bulb, Latex-free bulb, Y-site
4.  Luer slip or luer lock connector
5.  With or without needle (with cap if without needle)

Features:
1.  With CE/ISO13485/ISO9001/GMP/FSC
2.  Non toxic, Pyrogen-free, valid for 5 years
3.  OEM products available

Operation Instruction

1.Open the individual packing and take out the infusion set
2.Firmly close roller clamp
3.Insert plastic spike into container
4.Press drip chamber to fill half of it
5.Open roller clamp and expel air bubbles
6.Close roller clamp again
7.Apply needle into patients vein
8.Adjust flow rate by roller clamp and regulator
9.Open air inlet if use glass container and close the air inlet if use soft container
10.Dispose properly as medical waste after use


Cautions:

1. Check the batch number and validity before use.

2. Tighten the needle before use

3. It is strictly prohibited to use if the single packing damaged or needle cap

 drop off.

4. For single use only, use immediately after unsealed, destroy after use. It is

strictly prohibited to reuse.

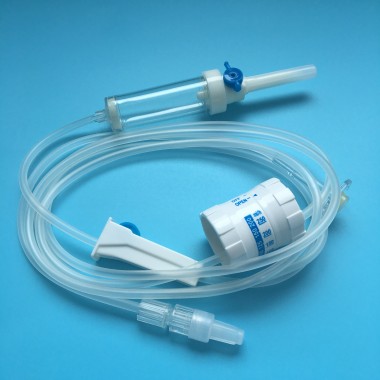

Product  Photos
